HTB Strap Hinges

Displaying 4 of 13 Standard Inventory Hinges

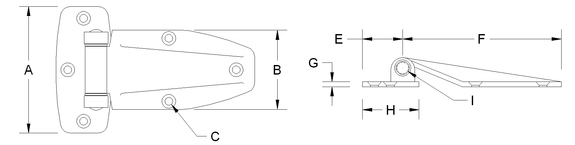

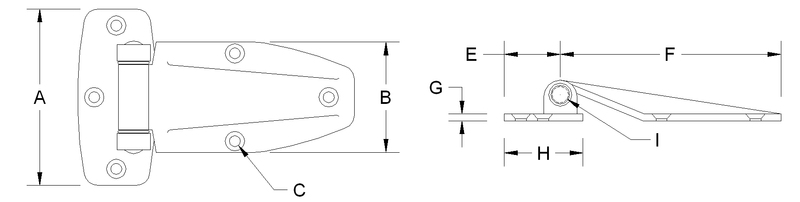

ProductNumber Material Material Info H B D A C E F G I PDF
HTB-120L5 / 16 STAINLESS 1.260 2.126 1.125 3.229 Ø.250 C'SUNK 0.898 4.725 0.158 0.315 PDF
HTB-120R5 / 16 STAINLESS 1.260 2.126 1.125 3.229 Ø.250 C'SUNK 0.898 4.725 0.158 0.315 PDF
HTB-120SSL STAINLESS 1.260 2.126 0.787 3.229 Ø.250 C'SUNK 0.898 4.725 0.158 0.315 PDF
HTB-120SSR STAINLESS 1.260 2.126 0.787 3.229 Ø.250 C'SUNK 0.898 4.725 0.158 0.315 PDF
ProductNumber Material H B D A C E F G I PDF

Note: Stainless means Polished Stainless Steel

Scroll down for more information
